Wet Test Track
Explore Limits

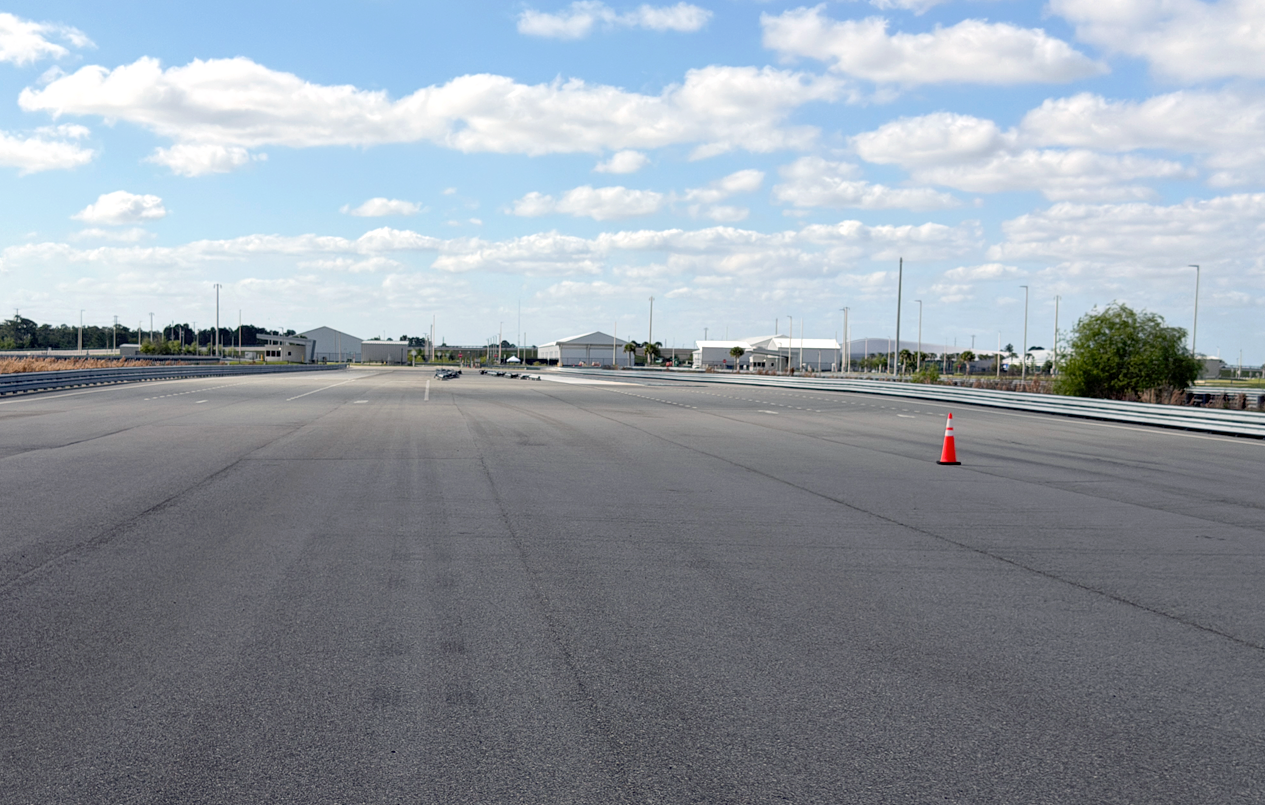

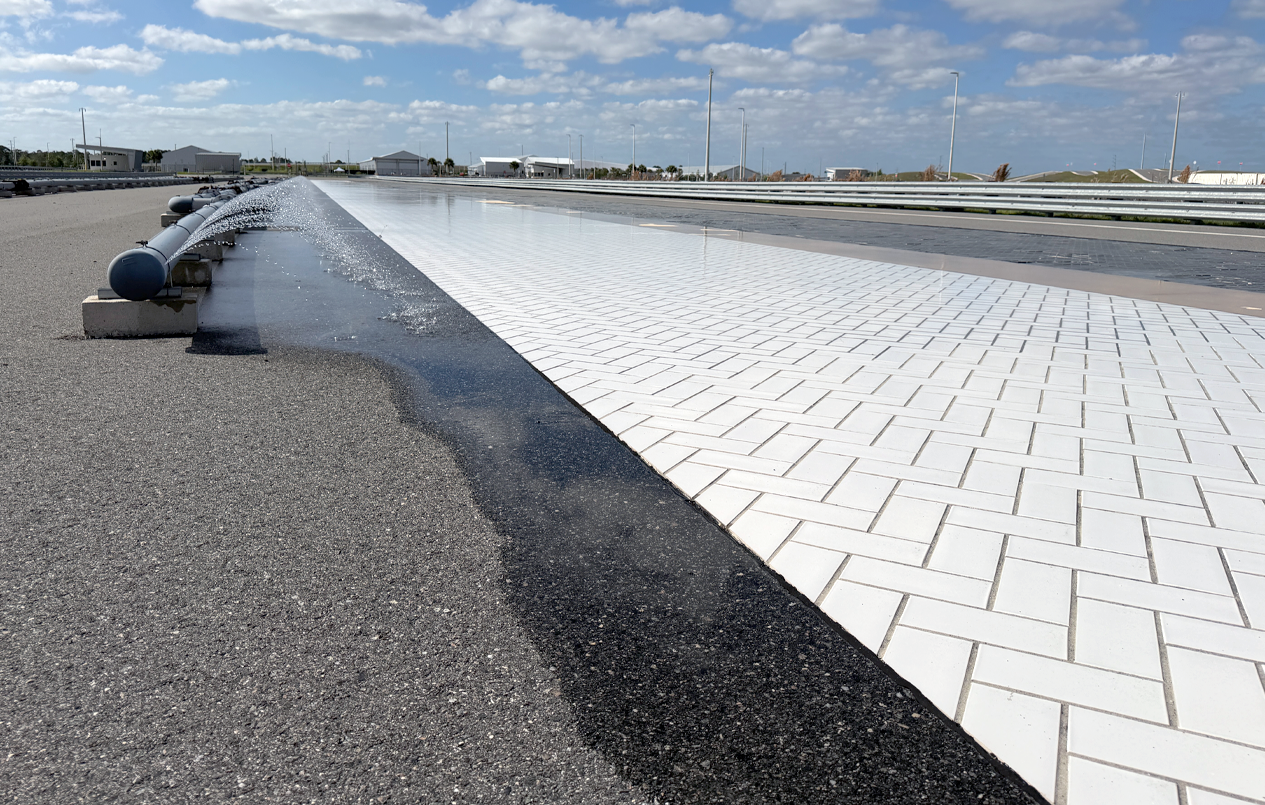

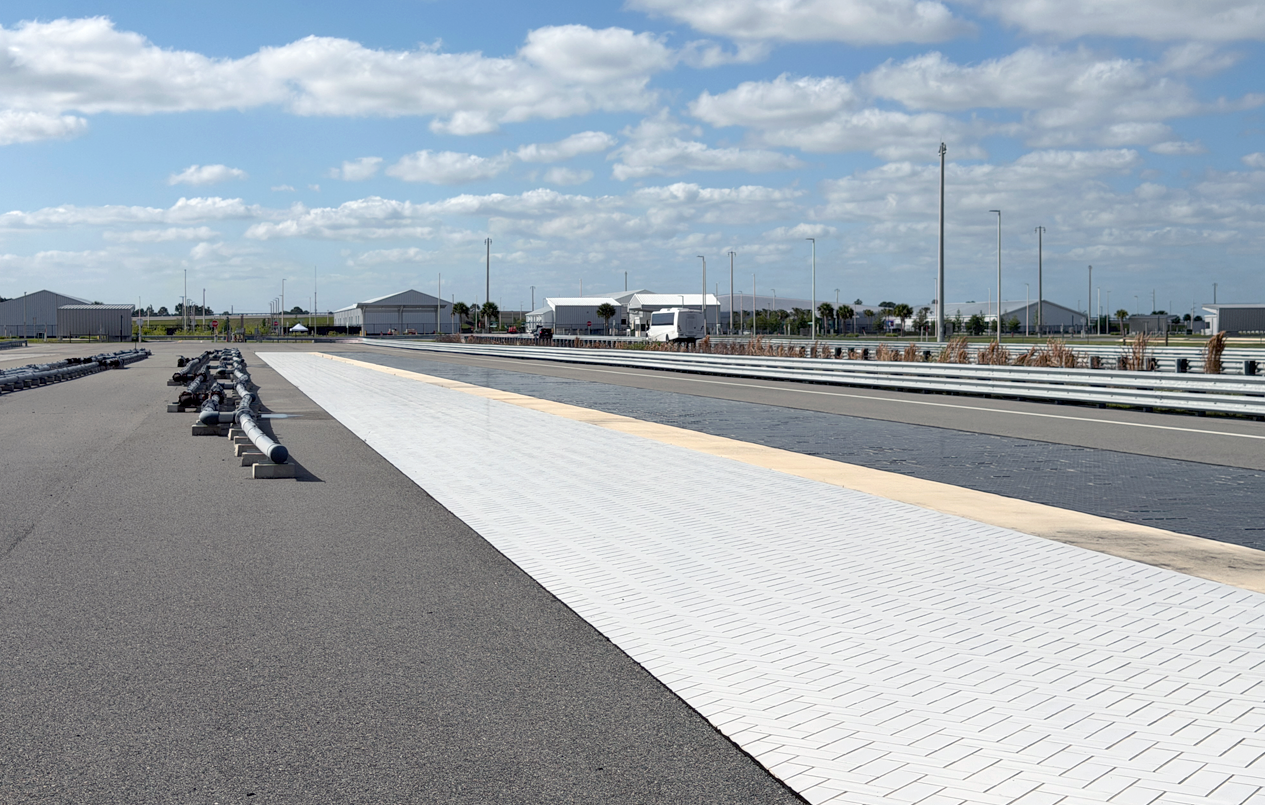

Varying road surfaces and weather conditions greatly impact how a vehicle interacts with its driver and surroundings. The Wet Test Track delivers four distinct surface types to test maneuverability in unpredictable weather. Each surface has an irrigated lane to replicate the effects of wet weather on vehicle performance and all are ideal for ABS development and testing, wet braking, stopping distancing, and tire evaluation. The two tile pavement tracks are 500 ft long by 13.60 ft wide while the steel plate and asphalt concrete tracks are both 500 ft long by 15 ft wide.
Technical Specifications
Overall Sector Dimensions
Total Sector Area
168,381 ft²
Total Asphalt Area
138,381 ft²
Total Area with Special Surfaces (4 Lanes)
30,000 ft²
Width (4 Lanes)
120 ft
Length of Run-Off Area (4 Lanes)
243 ft
Length of Acceleration Lanes (4 Lanes)
435 ft
Lane 1 - Low-Friction Tiles
Surface
Ceramic Tiles
Width
15 ft
Length
500 ft
Lane Type
Irrigated Braking Lane
Height
Very Low i²

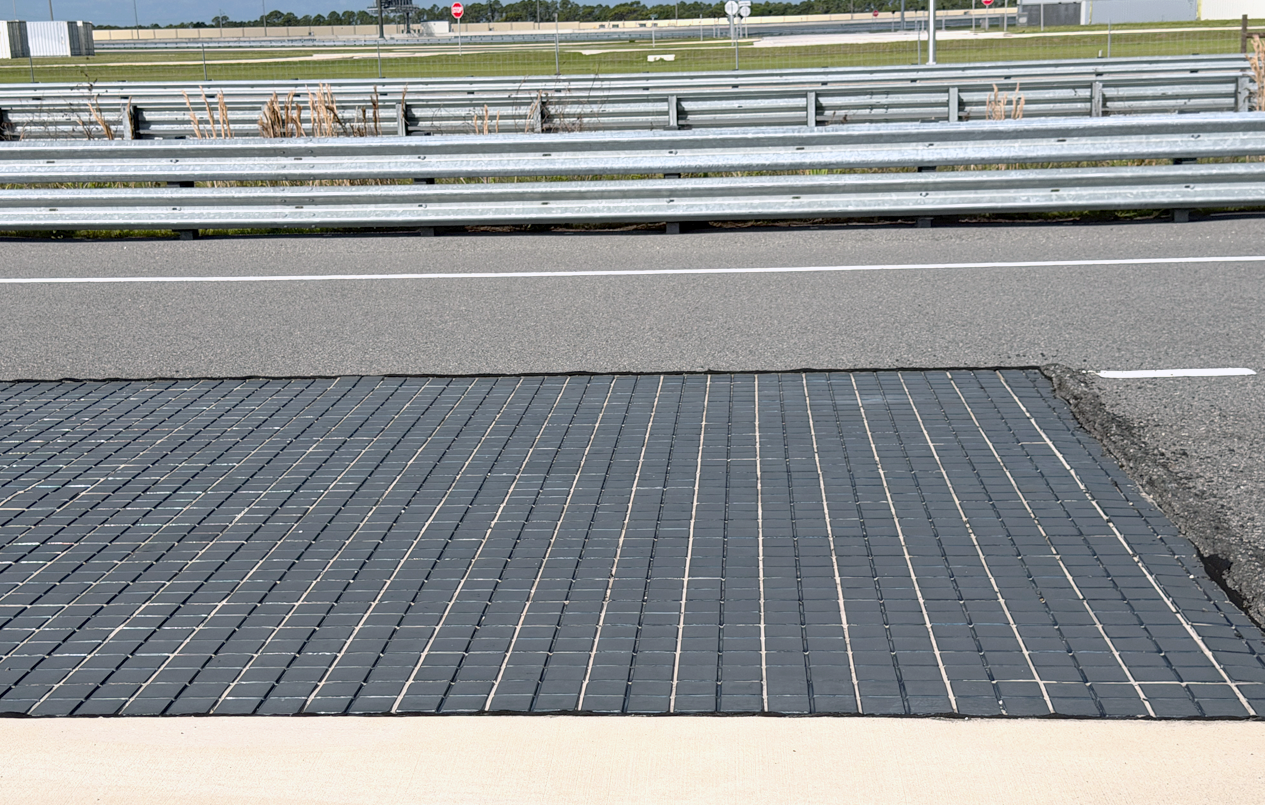

Lane 2 - Basalt Tiles
Surface
Basalt Tiles
Width
15 ft
Length
500 ft
Lane Type
Irrigated Braking Lane
Height
Low-Medium i² (~0.4)

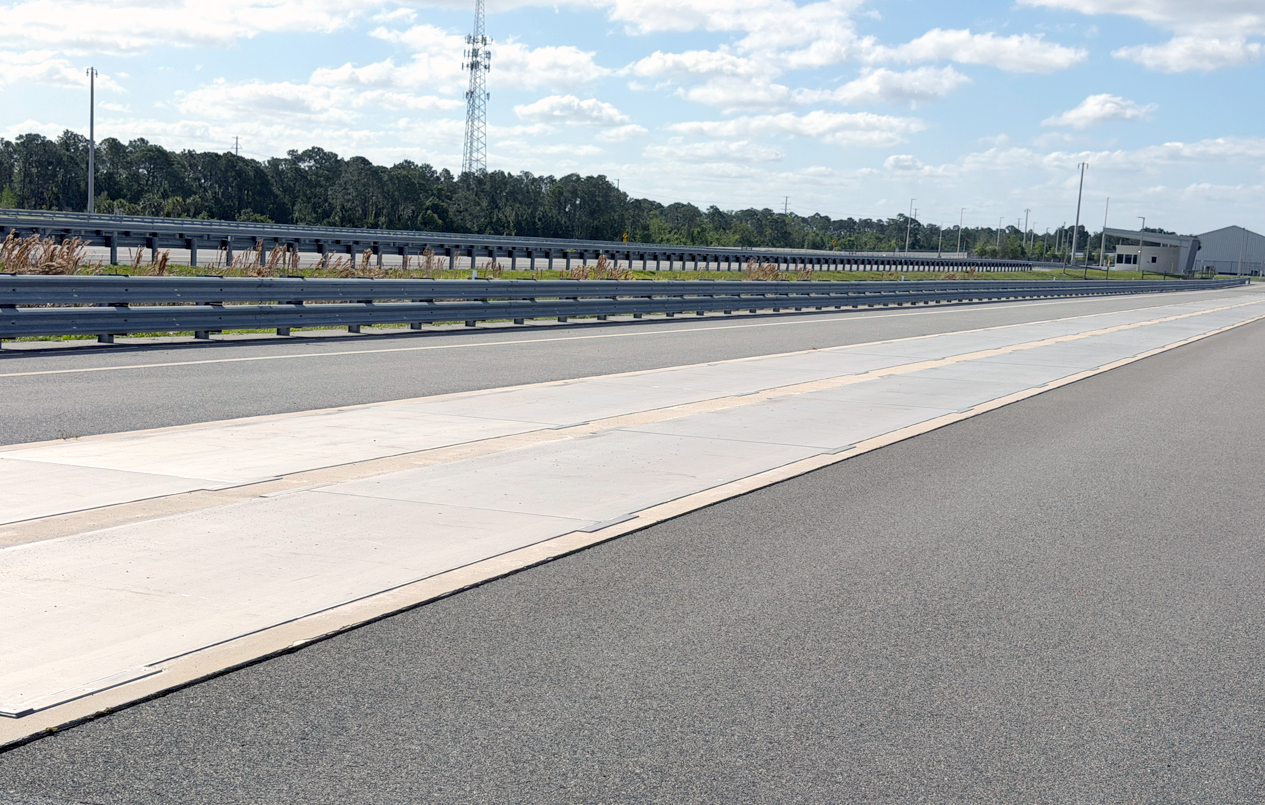

Lane 3 - Steel Plates
Surface
Stainless Steel Plate
Width
15 ft
Length
500 ft
Lane Type
Irrigated Braking Lane
Height
Low i²
Lane 4 - Low-Friction Asphalt
Surface
Asphalt
Width
15 ft
Length
500 ft
Lane Type
Irrigated Braking Lane
Certification
UNECE Regulation #117
